Platinum Spas OEM SS03 Hot Tub & Swim Spa Filter

Genuine Platinum Spas OEM SS03 Filter

Maintain clean, clear water and proper circulation with the genuine Platinum Spas SS03 replacement filter. Supplied in official InSpire packaging, this OEM cartridge is designed for compatible filtration systems used in select Platinum Spas hot tubs and swim spas.

The SS03 provides approximately 18 square feet of pleated filtration media to help capture dirt, oils, debris and other contaminants. It measures approximately 212 mm tall by 142.2 mm in diameter and features a closed top with a nominal 50 mm coarse male threaded connection.

This is a genuine Platinum Spas-approved OEM replacement filter—not a generic aftermarket substitute.

Package includes one SS03 filter cartridge. Many compatible Platinum Spas use two, three or more filters, so confirm the quantity required for your spa before ordering.

🔹 Key Benefits

• Genuine OEM filter for compatible Platinum Spas

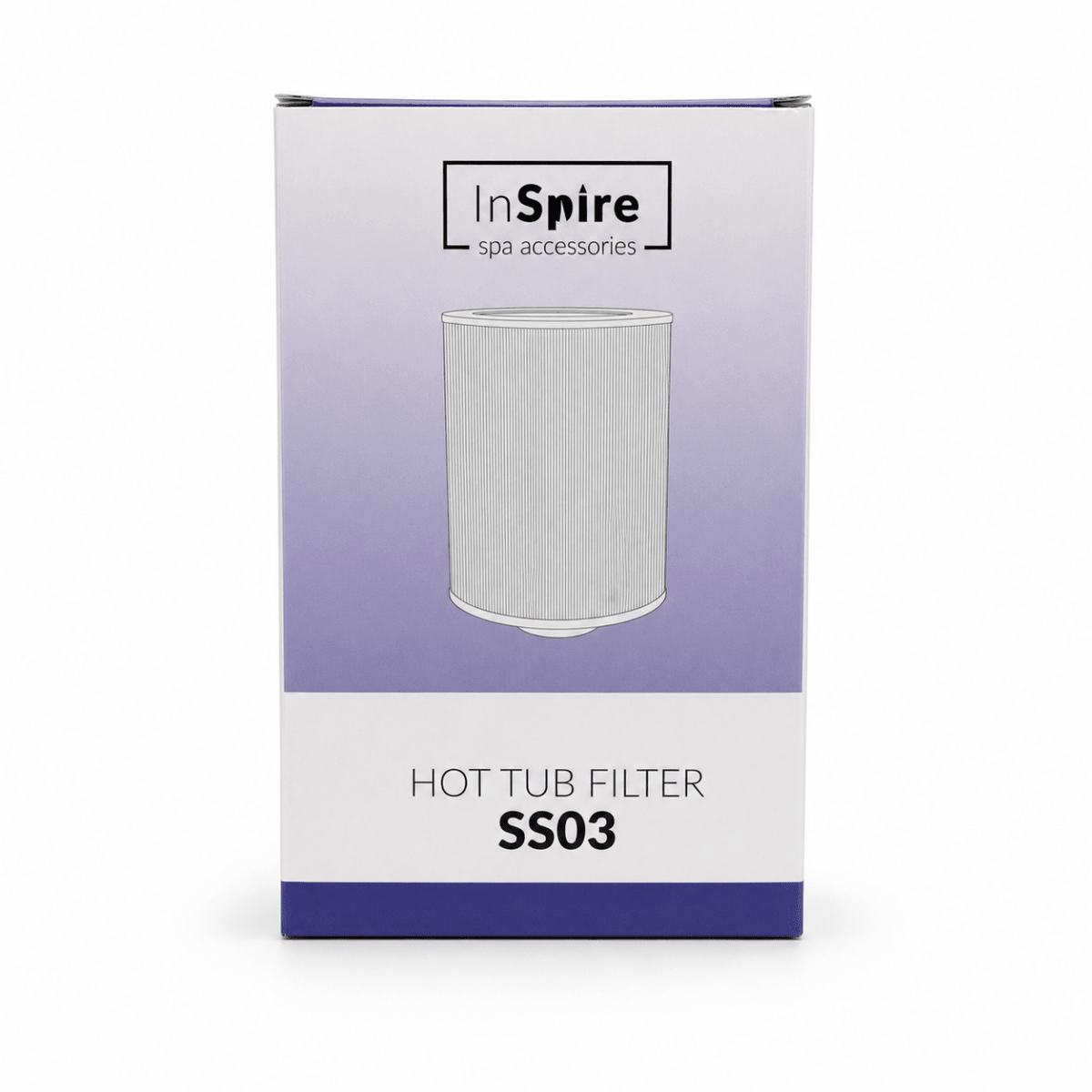

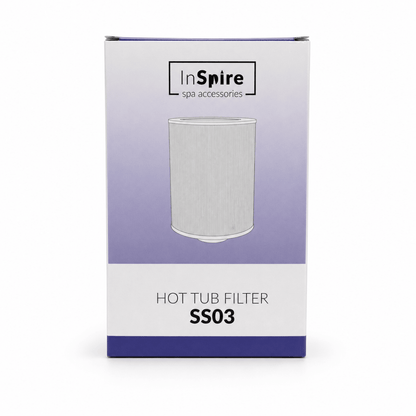

• Official SS03 filter supplied in InSpire packaging
• Approximately 18 square feet of pleated filtration media
• Helps capture dirt, debris, oils and other contaminants
• High-density pleated media provides effective depth filtration
• Designed to support efficient water flow
• Approximately 212 mm tall by 142.2 mm in diameter
• Closed-top cartridge design
• Nominal 50 mm coarse male threaded connection
• Washable and reusable with proper maintenance
• Direct replacement for Platinum Spas SS03

🔍 Compatible Platinum Spas

The SS03 is used in compatible filtration systems found in select Platinum Spas hot tubs and swim spas, including certain versions of the following models:

Platinum Spas Hot Tubs

• Platinum Spas Roma V1 – commonly uses three filters
• Platinum Spas Supreme V1 – commonly uses two filters
• Platinum Spas Tokyo V1 manufactured before approximately 2020 – commonly uses three filters
• Platinum Spas Barcelona V1 manufactured before approximately 2020 – commonly uses three filters
• Platinum Spas Maximus V1
• Platinum Spas Maximus V2
• Select Platinum Spas online-range models

Select Online-Range Applications

• Venezia
• Bari
• Verona
• Genova
• Cepheus
• Sagittarius
• Virgo
• Lyra

Platinum Spas Swim Spas

• Platinum Spas Ares V1 – commonly uses three filters
• Platinum Spas Ares V2 – commonly uses three filters
• Platinum Spas Zelus V1 – commonly uses two filters
• Select Platinum Spas Hera swim spas
• Select Platinum Spas Helios swim spas

Platinum Spas has used different filtration systems within certain models and production years. Do not order by model name alone. Confirm the SS03 number, dimensions, thread style and required quantity before purchasing.

📏 Confirm Your Filter Before Ordering

Your current filter should match the following characteristics:

• Platinum Spas or InSpire filter number SS03
• Approximately 18 square feet of filtration media
• Approximately 212 mm or 8.35 inches in total height
• Approximately 142.2 mm or 5.6 inches in outside diameter
• Closed, flat top without an opening
• Nominal 50 mm or approximately 2-inch coarse male thread
• Same end-cap shape and mounting configuration

The SS03 is commonly associated with replacement references SC862, 40214 and FD-2117. However, published measurements and thread descriptions for these cartridges are inconsistent. Compare the complete physical cartridge before substituting a cross-reference.

If you are uncertain, contact Southern Leisure with pictures of the top and bottom of your current filter, its measurements, your spa model and its production year before ordering.

📋 How to Replace

1. Turn off power to the spa or swim spa at the breaker.
2. Remove the filter cover or filter-access assembly.
3. Carefully unscrew the existing filter by hand.
4. Remove loose debris from the filter compartment.
5. Remove all protective packaging from the new SS03 cartridge.
6. Inspect the end caps, pleats and threaded connection.
7. Position the filter over the matching connection in the filter housing.
8. Thread the cartridge gently into place by hand.
9. Do not force, cross-thread or overtighten the filter.
10. Install any additional cartridges required by your spa.
11. Reinstall the filter cover or access assembly.
12. Restore power and confirm normal water circulation.

💬 Southern Leisure Says

The SS03 is used across several Platinum Spas models, but the required quantity can vary substantially. This listing includes one filter, so inspect the filter compartment and count your existing cartridges before ordering.

Matching the SS03 number is important, but it should not be your only check. Confirm the approximately 212 mm height, 142.2 mm diameter, closed top and coarse male threaded connection before installing the cartridge.

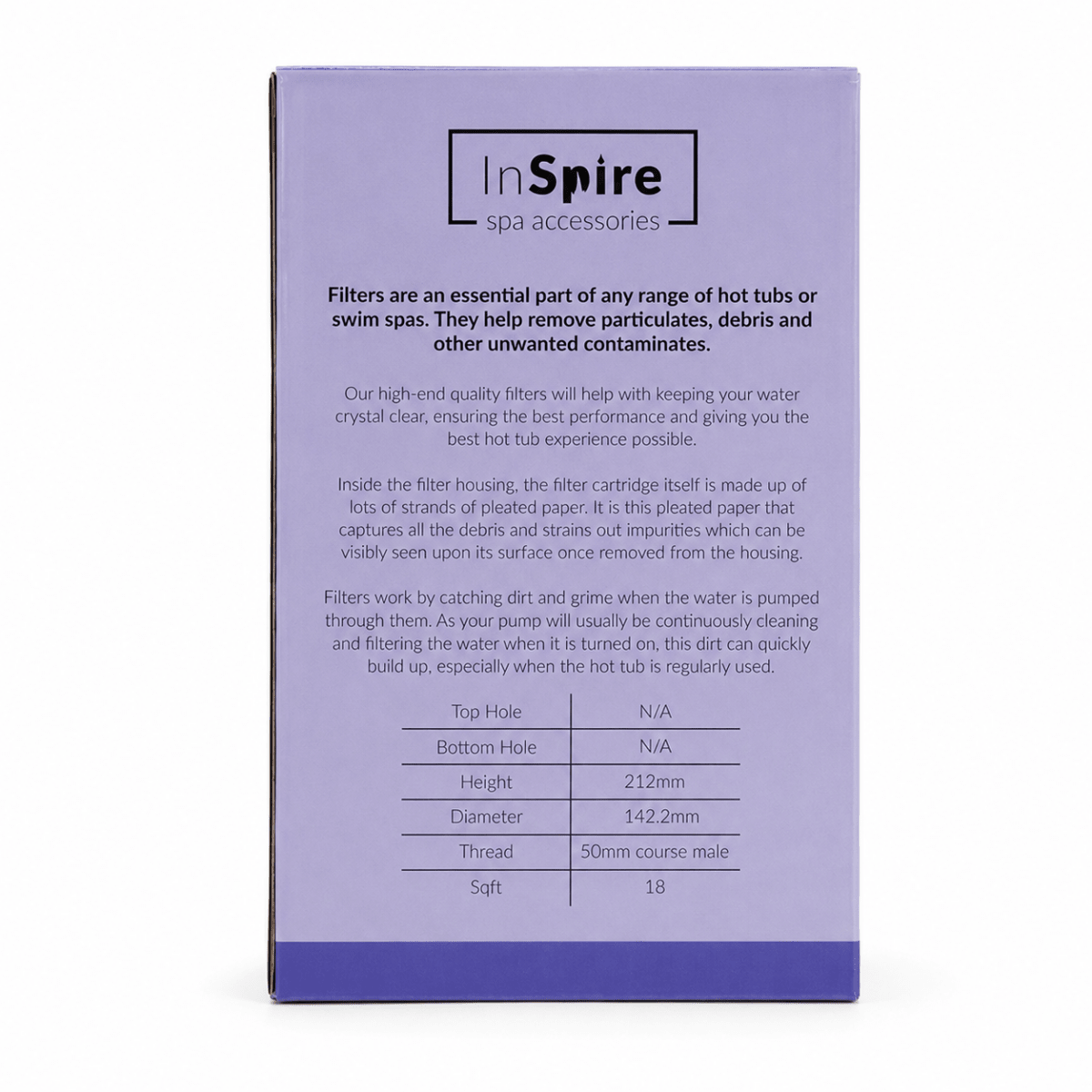

Some online SS03 listings show different dimensions or describe the thread differently. The specifications in this listing are taken directly from the packaging of the genuine OEM filter being sold by Southern Leisure.

🧼 Care & Maintenance

• Inspect and rinse the filter regularly during normal spa use.
• Carefully rinse between the pleats with a garden hose.
• Work from the top of the cartridge toward the bottom.
• Rotate the cartridge while rinsing to clean the entire filter.
• Clean more frequently during periods of heavy use.
• Periodically use a dedicated spa-cartridge cleaner to remove oils and residue.
• Follow the cleaner’s directions and rinse the cartridge thoroughly.
• Do not use a pressure washer, stiff brush or sharp cleaning tool.
• Maintain balanced water chemistry to support filtration performance.
• Replace the filter if the pleats become torn, collapsed or permanently restricted.
• If your spa uses multiple filters, inspect and maintain all cartridges together.
• Consider keeping a second complete set so one set can dry thoroughly after cleaning.

📌 Product Quick Facts

• Compatible brand: Platinum Spas
• Product: OEM pleated spa and swim-spa filter
• Filter number: SS03
• Packaging brand: InSpire Spa Accessories
• Common cross-references: SC862, 40214 and FD-2117
• Filtration area: Approximately 18 sq. ft.
• Total height: Approximately 212 mm or 8.35 inches
• Outside diameter: Approximately 142.2 mm or 5.6 inches
• Top: Closed and flat
• Bottom: Nominal 50 mm coarse male thread
• Filter media: High-density pleated filtration fabric
• Package quantity: One filter
• OEM product: Yes

⚙️ Specifications

Compatible Manufacturer	Platinum Spas
Filter Number	SS03
Packaging Brand	InSpire Spa Accessories
Product Type	OEM hot-tub and swim-spa filter cartridge
Filtration Area	Approximately 18 sq. ft.
Total Height	Approximately 212 mm or 8.35 inches
Outside Diameter	Approximately 142.2 mm or 5.6 inches
Top Configuration	Closed, flat top
Bottom Configuration	Male threaded connection
Thread	Nominal 50 mm coarse male thread
Common Cross-References	SC862, 40214 and FD-2117
Filter Media	High-density pleated filtration fabric
Package Quantity	One filter cartridge
OEM Product	Yes

❓ Frequently Asked Questions

Is this a genuine Platinum Spas OEM filter?

Yes. This is the genuine SS03 replacement filter supplied for compatible Platinum Spas and packaged under the InSpire Spa Accessories brand.

Why does the packaging say InSpire instead of Platinum Spas?

InSpire is the spa-accessory branding used for this official SS03 replacement cartridge. It is the OEM filter supplied for compatible Platinum Spas applications.

Will this filter fit every Platinum Spa?

No. Platinum Spas has used several filter sizes and configurations. Confirm the SS03 number, dimensions, closed top and coarse male threaded connection before ordering.

Does this fit newer Tokyo and Barcelona hot tubs?

The SS03 is most commonly associated with V1 Tokyo and Barcelona models manufactured before approximately 2020. Later versions may use a different filtration system, so confirm the existing cartridge before purchasing.

How many filters are included?

This listing includes one genuine SS03 filter cartridge.

How many SS03 filters does my spa require?

The required quantity depends on the model and filtration configuration. Certain Platinum hot tubs use two or three cartridges, while some swim spas may use two, three or more. Count the filters currently installed before selecting your order quantity.

Does the SS03 replace SC862, 40214 or FD-2117?

These numbers are commonly listed as SS03 cross-references. However, published specifications vary, so compare the complete cartridge dimensions, top configuration and threaded connection before substituting any cross-reference.

Can the SS03 be cleaned and reused?

Yes. Carefully rinse between the pleats with a garden hose and periodically use a dedicated spa-cartridge cleaner. Thoroughly rinse away all cleaning solution before reinstalling the filter.

Can I clean this filter with a pressure washer?

No. High-pressure water can damage the pleats and reduce filtration performance. Use a standard garden hose with moderate water pressure.

When should the filter be replaced?

Replace the cartridge when the pleats become torn, collapsed or permanently restricted, or when proper water flow cannot be restored through cleaning. Service life depends on spa usage, water chemistry and maintenance.
