Viking Spas Round Hot Tub Replacement Filter - WC.CPG0019

Viking Spas Round Hot Tub Replacement Filter

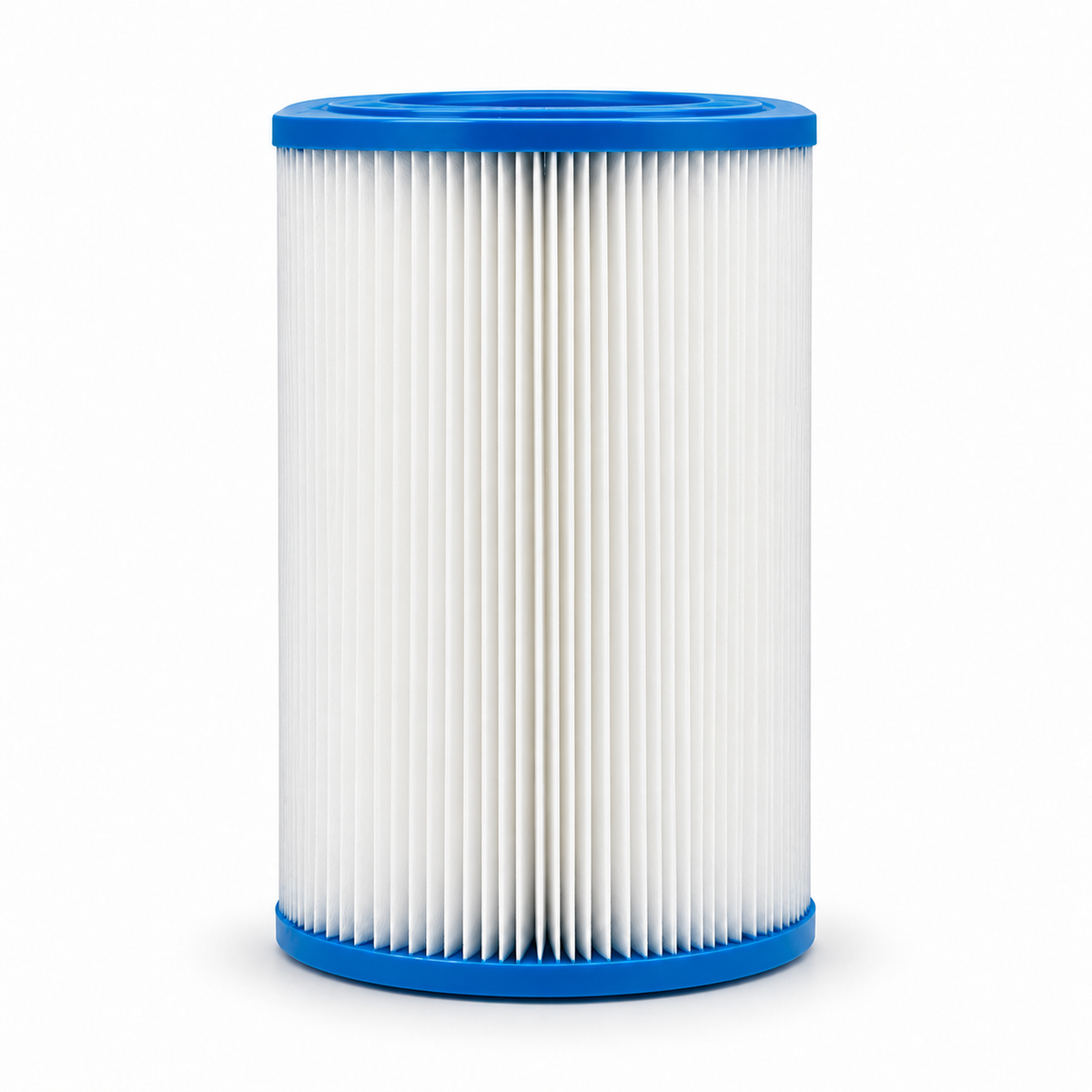

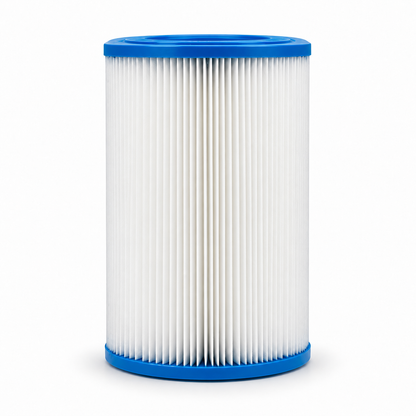

Keep your Viking round hot tub properly circulating with replacement filter WC.CPG0019. This professional-grade pleated filter cartridge helps capture dirt, debris, body oils and other contaminants as water passes through the spa’s filtration system.

This filter is designed for current-generation Viking and Viking P+ round hot tubs. It measures approximately 5" in diameter by 7-1/8" long and contains 12.8 sq. ft. of pleated filter media.

🔹 Key Benefits

• Replacement filter for current Viking round hot tubs
• Fits the Viking and Viking P+ round models
• Helps capture dirt, debris and other contaminants
• Supports proper water circulation and filtration
• Professional-grade pleated filter media
• Compact cartridge designed for compatible Viking filter systems
• Easy to remove, rinse and reinstall
• Made in the USA using domestic and globally sourced components

🧩 Compatibility & Fitment

This replacement cartridge is designed for select current-generation Viking Spas equipped with the compact filter configuration.

Confirmed and best-supported fitment:

• Viking Spas Viking P+ round hot tub
• Viking Spas Viking 240V round hot tub

Potential additional fitment:

• Viking Spas Elevate P+ models using filter WC.CPG0019
• Select cold plunges using the same cartridge dimensions and end-cap configuration

The Elevate P+ and cold-plunge applications should be confirmed by comparing the existing cartridge before ordering. The replacement filter must match item number WC.CPG0019, the cartridge dimensions and the openings on both end caps.

This filter does not fit the Regal P+ or Royale P+. Those models use a larger 50 sq. ft. filter system.

This is not a replacement for Viking filter 89680. The 89680 is a substantially shorter filter used in certain older Viking round spas.

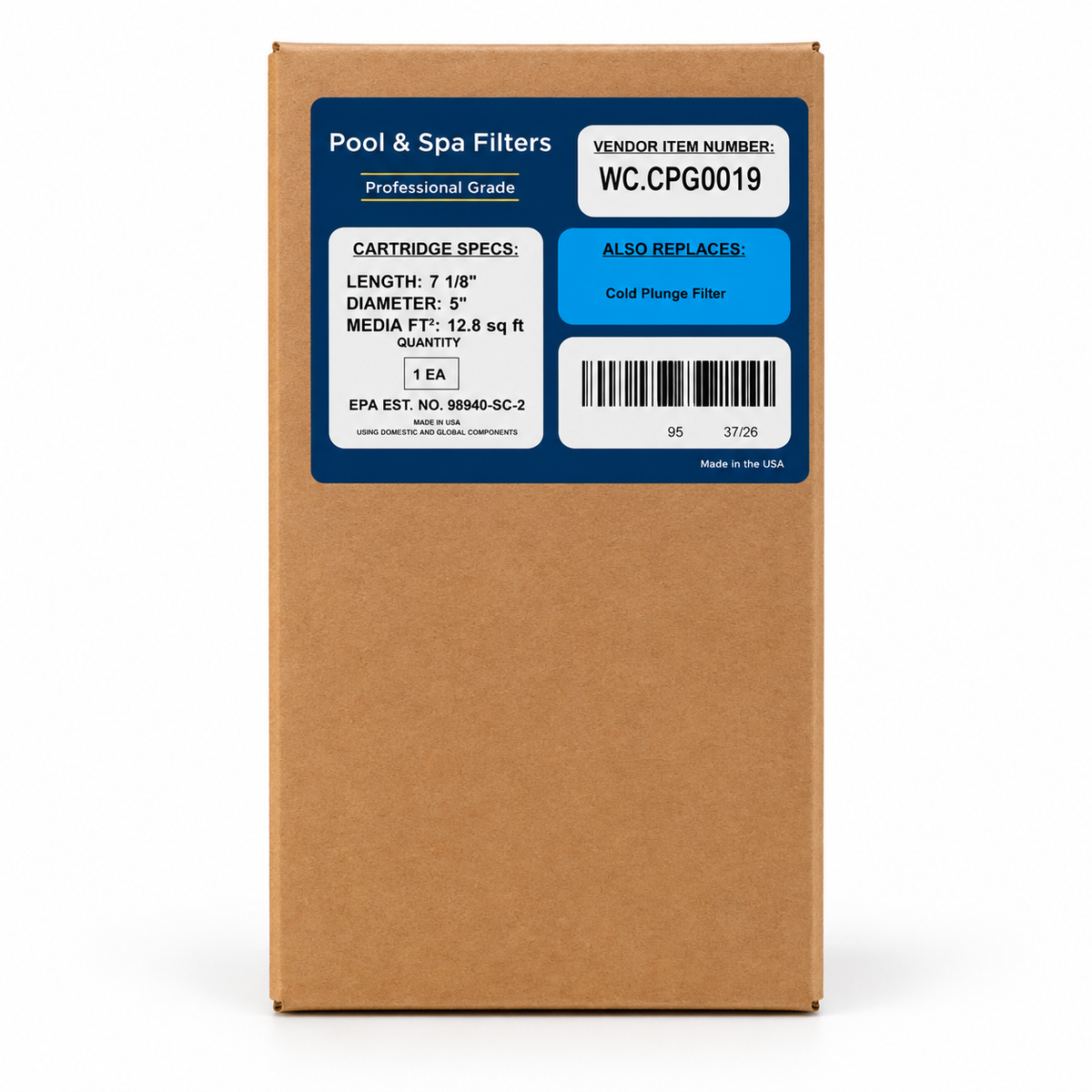

Viking describes the current Viking and Viking P+ models as having a 20 sq. ft. filtration system. The WC.CPG0019 cartridge packaging identifies the physical filter media as 12.8 sq. ft. Because filtration-system and cartridge-media ratings may be calculated differently, use the item number and physical dimensions when confirming compatibility.

📋 How to Install

1. Turn off power to the spa before opening the filter compartment.
2. Remove the existing filter cartridge.
3. Compare the replacement cartridge with the original, including its length, diameter and end-cap openings.
4. Remove any loose debris from the filter compartment without allowing debris to enter the plumbing.
5. Place the new filter into the proper position inside the filter compartment.
6. Reassemble the filter compartment and restore power to the spa.
7. Confirm that water is circulating normally before using the hot tub.

🧼 Care & Maintenance

• Inspect the filter weekly and rinse it when dirt or debris is visible.
• Use a garden hose to rinse between the pleats from top to bottom.
• Do not use a pressure washer, stiff brush or household detergent.
• Periodically soak the cartridge in a cleaner made specifically for spa filters.
• Rinse the filter thoroughly before returning it to the spa.
• Allow the cartridge to dry completely when rotating between two filters.
• Replace the filter at least once per year or sooner if it becomes damaged or difficult to clean.

💬 Southern Leisure Says

Maintaining a clean filter is one of the simplest ways to protect water quality and support proper spa circulation. We recommend keeping a second cartridge available so one filter can soak, rinse and dry while the other remains in service.

⚡ Product Quick Facts

Product Type	Replacement spa filter cartridge
Confirmed Fitment	Current Viking and Viking P+ round hot tubs
Item Number	WC.CPG0019
Quantity	1 filter cartridge
Outside Diameter	5"
Length	7-1/8"
Filter Media	12.8 sq. ft.

⚙️ Specifications

Vendor Item Number	WC.CPG0019
Outside Diameter	5"
Overall Length	7-1/8"
Filter Media Area	12.8 sq. ft.
Construction	Pleated filter cartridge
Color	White pleated media with blue end caps
Quantity	1 cartridge
Additional Application	Select cold plunges using the same dimensions and end-cap configuration
Country of Manufacture	Made in the USA using domestic and globally sourced components

❓ Frequently Asked Questions

Does this filter fit the Viking P+ round hot tub?

Yes. This filter fits the current-generation Viking P+ round hot tub.

Does it fit the 240V Viking round hot tub?

Yes. The current 240V Viking round model uses the same compact filtration configuration.

Will it fit the Viking Elevate P+?

The Elevate P+ also uses a compact 20 sq. ft. filtration system, but the cartridge should be physically compared before ordering. Confirm item number WC.CPG0019, the 5" diameter, the 7-1/8" length and the end-cap configuration.

Does this filter fit the Regal P+ or Royale P+?

No. The Regal P+ and Royale P+ use a larger 50 sq. ft. filter system.

Is this the same as Viking filter 89680?

No. The 89680 is a substantially shorter cartridge used in certain older Viking round spas. It is not a direct replacement for WC.CPG0019.

What size is this filter?

The cartridge measures approximately 5" in diameter by 7-1/8" long and contains 12.8 sq. ft. of pleated filter media.

Can this filter be cleaned and reused?

Yes. Rinse between the pleats regularly with a garden hose and periodically use a cleaner made specifically for reusable spa filter cartridges.

How often should the filter be replaced?

Replace the cartridge at least once per year or sooner if the pleats become damaged, the end caps crack, the cartridge remains dirty after cleaning or spa water flow begins to decline.
